What is it for?

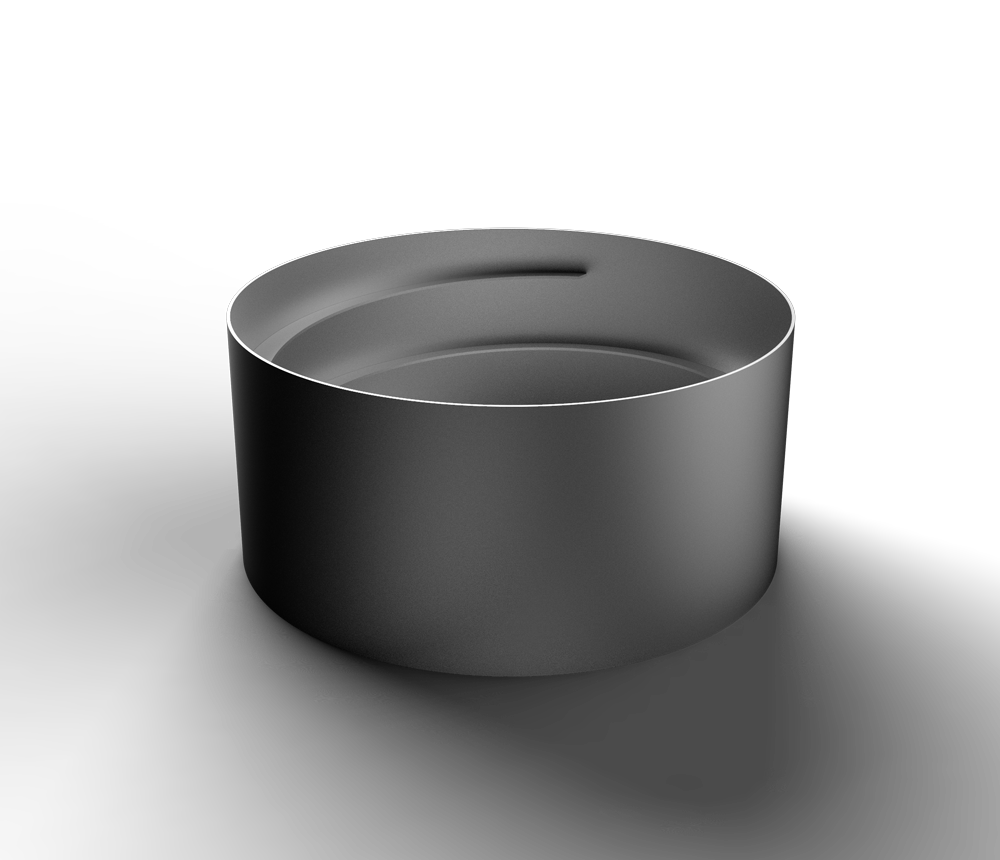

Feeding bowls are designed to contain the different parts which are inserted randomly. They are joined firmly to the vibrating ‘motor’ underneath.
All the different models, from the 160 mm diameter to the 1000 mm diameter, contain a spiral shaped track, starting from the bottom area and ending at the top.
The orienting of the parts can take place by means of different methods and it requires experience, professional skills and talent.
In order to choose structure and materials for the most suitable bowl, different factors must be taken into consideration on the basis of the parts to be oriented.
In GascoGroup we can decide, even only from drawings or images of the parts, which is the right bowl for your machinery.
Would you like to know which bowl is most suitable for your needs? Access our Free Test service.
How and why choose it?
Cylindrical bowls have a smaller diameter compared to the drive unit. This is particularly useful in case of parts with complex structures or wherever high productivity is needed.
Despite above mentioned advantages, there are some critical points to be taken into consideration: a limited loading capacity with possible entanglements in the coils.
All this can be avoided by means of automated loading systems (hoppers, vibratory tanks, vertical loaders, etc). They are ideal for small parts, screws, fragile items and a frequency higher than 100 parts/minute. Special versions with 2/3-way coils or tracks and relevant undertrack are possible. Would you like to know if the cylindrical bowl is suitable for your needs? Book our consulting service.
Technical features
Materials and customising
All our standard bowls are manufactured in AISI 304 stainless steel, but they can also be in AISI 316, manganese steel or with screwed tracks in C75 steel.
The standard finishing consists of an internal and external micro shot-blasting, but also manual polishing or certified electropolishing can be performed.
Internal coatings may also vary, these can be both glued or sprayed coatings with wear-resistant, sound-resistant and oil-proof materials.
With regards to food or medical fields the tracks can be seam welded. The bowls can be manufactured in dedicated and special sizes (external diameter, coil width and pitch).
They can also be modified to be used on other brands drive units.
CLOCKWISE
ANTICLOCKWISE
Scroll to check all the data in the chart
N.B. In order to access DWG and STEP file you must sign up and proceed to login to download them in the following website section: 3D Downloads.
| Bowl code | Drive unit code | D (mm) | H (mm) | H tot (mm) | Kg/Volume (dm3) | Download |
|---|---|---|---|---|---|---|
| 1CIA | BV15-2 | 160 | 75 | 207 | 0,9/0,5 |  |
| 1CIB | BV15-2 | 200 | 75 | 207 | 1,7/1 | |
| 2CIA | BV25-2 | 250 | 125 | 325 | 3/1,5 | |
| 2CIB | BV25-2 | 300 | 135 | 335 | 4,5/2,5 | |
| 3CIA | BV35-2 | 350 | 150 | 376 | 5,7/3,5 | |
| 3CIB | BV35-2 | 400 | 170 | 396 | 6/5 | |
| 4CIA | BV45-2 BV45-1 |
450 | 210 | 464 484 |
6/7,5 6/7,5 |
|
| 4CIB | BV45-2 BV45-1 |
500 | 230 | 484 504 |
9,5/9,5 |
|
| 4CIB | BV45-2 BV45-1 |
500 | 210 | 464 484 |
9,5/9,5 9,5/9,5 |
|
| 5CIA | BV55-1 | 550 | 235 | 499 | 13/12 | |
| 5CIB | BV55-1 | 600 | 235 | 499 | 13/12 | |
| 6CIA | BV65-1 | 600 | 280 | 559 | 13/15 | |
| 6CIB | BV65-1 | 650 | 320 | 599 | 18/18 | |
| 6CIC | BV65-1 | 700 | 320 | 599 | 18/18 | |
| 7CIA | BV75-1 | 800 | 420 | 718 | 23/20 | |
| 7CIB | BV75-1 | 900 | 420 | 718 | 28/25 | |
| 8CIA | BV85-1 | 1000 | 440 | 754 | 50/45 | |
Models BV46, BV56, BV66 (three-magnet units) have different total heights, to be taken into consideration according to the unit characteristics.
For further info, please check our catalogue.
This feeding bowl can be combined to these drive units:
Find out about the other bowls:
